The geotechnical profile beneath Elk Grove reflects a complex interaction between the Laguna Creek watershed and the broader Sacramento Valley alluvial basin. Seasonal groundwater fluctuations, coupled with the presence of compressible silts and loose sands deposited by ancient flood events, create a subsurface environment where standard penetration data is essential before any structural load is applied. The SPT (Standard Penetration Test) provides the quantitative N-value benchmarks that local engineers rely on to differentiate between competent bearing strata and zones requiring ground improvement. In a region where the IBC mandates site-specific seismic parameters, raw blow count data from the SPT is the primary input for liquefaction screening per Youd-Idriss methodologies and for correlating relative density in the sandy lenses common east of Highway 99. Understanding the depositional history of the Laguna Formation allows our field crews to anticipate refusal depths and adjust drilling parameters accordingly, ensuring that every 18-inch sampler interval yields actionable information. For sites with high groundwater, early SPT results often trigger the need for complementary soil liquefaction assessment to confirm seismic stability before excavation permits are issued.

N-values below 15 in saturated sands east of Highway 99 require mandatory liquefaction screening per CBC Section 1803.5 — ignoring this correlation is a structural risk.

How we work

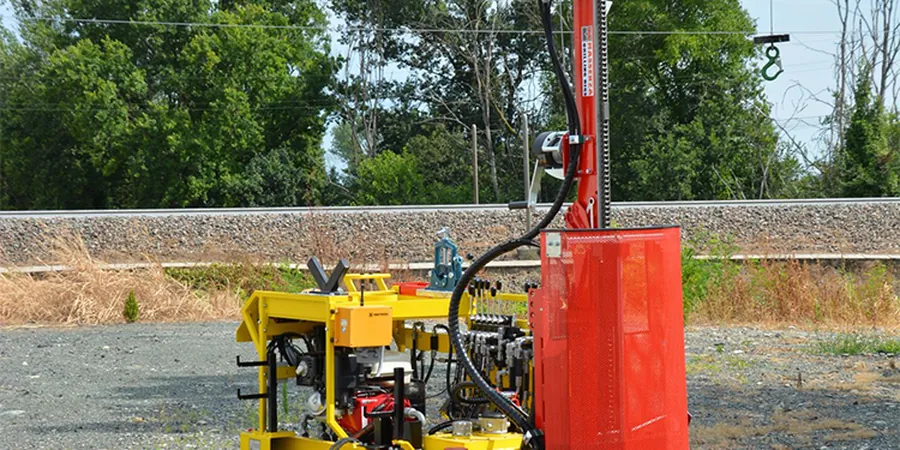

Field execution of the SPT in Elk Grove demands careful attention to energy calibration because the local soils range from stiff clay to loose granular deposits. Our drillers operate CME-75 rigs equipped with automatic trip hammers that conform to ASTM D1586-18, and every hammer system undergoes regular energy ratio verification to ensure the measured N-values correlate accurately with published empirical relationships. The standard procedure advances a 2-inch OD split-spoon sampler 18 inches into the undisturbed soil below the borehole bottom, recording the blow counts for each 6-inch increment. The sum of the second and third increments defines the N-value, which then feeds directly into bearing capacity equations, settlement predictions, and liquefaction triggering analyses. In the silty sands common near Elk Grove Creek, the sampler often retrieves disturbed samples suitable for visual classification and subsequent grain size analysis to confirm fines content, a critical parameter for seismic site classification per ASCE 7-22 Chapter 20.

Local ground factors

A three-story medical office project near Big Horn Boulevard encountered a subsurface condition that illustrates the risk of relying on generalized soil maps. Preliminary desk studies suggested dense alluvium, but the SPT rig hit a 12-foot layer of soft, organic clay at 15 feet with N-values consistently under 6. The structural engineer had designed a conventional spread footing system based on presumed 2,500 psf bearing capacity, yet the low blow counts indicated settlement potential exceeding two inches under the column loads. The field supervisor immediately logged the refusal on the split-spoon sampler and flagged the zone for laboratory consolidation testing. Without timely SPT data from that specific borehole, the project would have proceeded on an unsafe foundation assumption, leading to differential settlement and potential structural distress within the first five years of service. The case underscores why the California Building Code requires a sufficient number of SPT borings to characterize variability across the building footprint, particularly in Elk Grove where paleochannel deposits can shift dramatically over short horizontal distances.

Technical data

Parameter	Typical value
Test Standard	ASTM D1586-18
Hammer Type	Automatic trip hammer (safety hammer equivalent)
Sampler	Standard split spoon, 2-inch OD, 24-inch length
Depth Interval	Every 5 feet or at stratum change
N-value Correction	Overburden pressure (CN) and energy ratio (CE) per NCEER
Energy Ratio (ER)	60% standard reference (N60)
Liquefaction Screening	Seed-Idriss simplified procedure, Youd et al. (2001)
Bearing Capacity Derivation	Meyerhof, Terzaghi, and Bowles correlations

Other technical services

Foundation Bearing Capacity Determination

We execute SPT borings to depths of 30-50 feet, correlating N60 values with allowable bearing pressures for spread footings and mat foundations using Meyerhof and Terzaghi formulations, with settlement estimates under service loads.

Liquefaction Triggering Analysis

SPT data from saturated granular layers is processed through the Seed-Idriss simplified procedure to calculate factor of safety against liquefaction and estimate post-liquefaction settlement, compliant with CBC and ASCE 7 requirements.

Seismic Site Class Determination

We derive Vs30 estimates from SPT N-value correlations and assign NEHRP site class (C, D, or E) for structural design base shear calculations, a mandatory step for Elk Grove projects per the California Geological Survey.

Ground Improvement Verification

Post-treatment SPT testing validates compaction grouting, stone columns, or vibro-replacement by comparing pre- and post-improvement N-value profiles, confirming that the design relative density has been achieved in the target zone.

Applicable standards

ASTM D1586-18: Standard Test Method for SPT and Split-Barrel Sampling of Soils, ASTM D2487-17: Standard Practice for Classification of Soils for Engineering Purposes (USCS), ASCE 7-22: Minimum Design Loads and Associated Criteria for Buildings, 2022 California Building Code (CBC) – Chapter 18: Soils and Foundations, NCEER Workshop on Evaluation of Liquefaction Resistance (Youd & Idriss, 2001)

Frequently asked questions

How many SPT borings are required for a typical commercial building in Elk Grove?

The 2022 California Building Code specifies a minimum of one boring for every 2,500 square feet of building footprint for structures up to three stories, with at least two borings for any site. For larger or irregular footprints, the geotechnical engineer of record may increase the count to capture lateral variability in the Laguna Formation deposits, especially where paleochannel features are suspected.

What is the cost range for an SPT investigation on a residential lot in Elk Grove?

Can SPT N-values be used directly for liquefaction assessment or are additional corrections needed?

Raw field N-values must be corrected for overburden pressure, hammer energy ratio, rod length, borehole diameter, and sampling method to obtain the standardized N1(60) value. This corrected value is then used in the Seed-Idriss liquefaction triggering correlation. Applying raw blow counts without these corrections will produce unconservative results in the sandy soils common near Elk Grove Creek.
