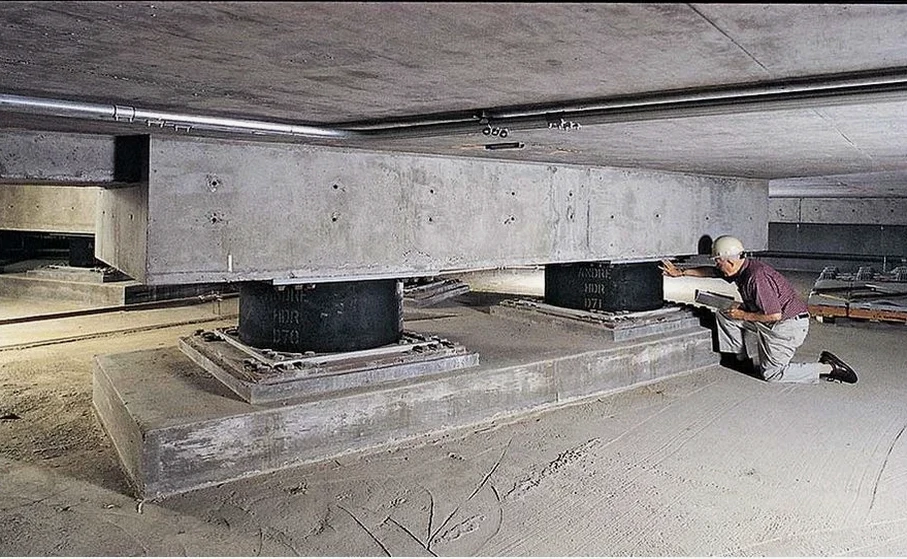

Base Isolation Seismic Design in Elk Grove: Performance-Based...

Q: What is the typical cost range for a base isolation seismic design package in Elk Grove?

Scope complexity and the number of ground motion suites required influence the final fee.

Elk Grove sits in a unique seismic pocket of the Sacramento Valley, where the deep sedimentary basin can amplify long-period ground motions from distant Bay Area faults. For critical facilities and essential buildings, conventional fixed-base design often falls short of performance objectives. Base isolation seismic design addresses this directly by decoupling the superstructure from ground movement. At 45 feet above sea level with highly variable alluvial soils, the area demands a thorough geotechnical investigation before any isolator selection. We combine in-situ permeability testing to assess drainage conditions beneath the isolation plane with detailed stratigraphic profiling. The goal is a system that performs reliably during a 475-year return period event without compromising functionality. Our approach integrates nonlinear time-history analysis calibrated to Elk Grove’s subsurface response, ensuring the isolation period targets the site-specific spectral demands rather than generic code assumptions.

A well-tuned isolation system in Elk Grove reduces spectral acceleration demands by 60-80% compared to fixed-base, preserving both structural integrity and building contents.

How we work

ASCE 7-22 Chapter 17 governs the analysis and testing requirements for seismically isolated structures. For Elk Grove, the Site Class D or E conditions commonly encountered demand that isolator prototypes undergo full-scale testing to twice the maximum considered earthquake displacement. The design process starts with establishing a lower bound and upper bound soil profile, then running spectrum-compatible ground motions through a 3D model. Modern lead-rubber bearings (LRB) and friction pendulum systems (FPS) each have distinct advantages depending on the column grid and anticipated vertical load variation. We verify that the isolation system’s effective period—typically between 2.5 and 3.5 seconds for this region—avoids resonance with the basin’s fundamental frequency. Wind performance also gets scrutinized; the isolators must remain elastic under 10-year wind loads while yielding under seismic excitation. This dual requirement often dictates the yield strength of LRB cores or the radius of curvature for FPS. When the foundation soil exhibits marginal bearing capacity, integrating stone columns beneath the basement raft can reduce differential settlement and keep the isolation plane level over the structure’s life. For sites near the Cosumnes River where shallow groundwater complicates excavation, deep excavations support becomes part of the constructability review, ensuring the moat wall and utility connections remain serviceable post-event.

Local ground factors

Elk Grove has experienced felt shaking from the 1989 Loma Prieta and 2014 South Napa earthquakes, but the primary risk driver is a repeat of the 1868 Hayward Fault rupture—estimated at M6.8—which could generate long-duration shaking amplified by the Central Valley basin. Fixed-base hospitals or data centers in the city would see floor accelerations exceeding 1.2g under this scenario, rendering sensitive equipment inoperable. Base isolation seismic design changes the failure hierarchy: damage concentrates in replaceable isolators and flexible utility couplings rather than in structural fuses or life-safety systems. A critical risk still lies in moat wall pounding if the clearance underestimates near-fault velocity pulses. We mitigate this by running multiple ground motion suites—including pulse-like records—and checking residual displacement at the end of each analysis. For liquefiable layers identified through liquefaction screening, ground improvement beneath the isolation raft is non-negotiable; post-earthquake settlement would tilt the isolation plane and lock the bearings.

Technical data

Parameter	Typical value
Isolation period range	2.5 – 3.5 s (typical for Site Class D)
Damping ratio (LRB)	15 – 30% effective at MCE displacement
Minimum moat clearance	1.2 × D_MCE per ASCE 7-22 §17.2.5
Prototype test displacement	2.0 × D_M for isolator qualification
Uplift restraint capacity	Verify for corner isolators under MCE
Soil bearing pressure	≤ 5 ksf for mat foundation under isolators
Applicable site class	D or E (basin effects considered)

Other technical services

Site-Specific Hazard & Geotechnical Integration

We develop the design basis earthquake parameters using the USGS Unified Hazard Tool, adjusted for Elk Grove basin amplification. The geotechnical report feeds directly into soil-structure interaction springs beneath each isolator, ensuring the fundamental mode period is not skewed by flexible foundation assumptions.

Isolator Specification & Nonlinear Modeling

Lead-rubber, high-damping rubber, or triple pendulum systems are modeled in ETABS or SAP2000 with experimentally calibrated hysteresis loops. We prepare procurement specifications aligned with ASCE 7-22 Section 17.5, including prototype and production test acceptance criteria.

Peer Review & Construction Support

Independent review of the isolation design, including ground motion scaling verification and moat wall detailing. During construction, we inspect isolator installation, verify leveling tolerances, and witness field testing of utility crossings to confirm flexibility under MCE displacement demands.

Applicable standards

ASCE/SEI 7-22 Chapter 17: Seismic Isolation, ASCE/SEI 41-23: Seismic Evaluation and Retrofit (for existing structures), AASHTO Guide Specifications for Seismic Isolation Design, ISO 22762:2018 Elastomeric seismic-protection isolators, ASTM D4014 Standard Specification for Plain and Steel-Laminated Elastomeric Bearings

Frequently asked questions

Does base isolation eliminate the need for seismic detailing in the superstructure?

No. The isolation system drastically reduces ductility demands, but the superstructure must still maintain a complete lateral load path. Typically, the superstructure can be designed for a reduced response modification coefficient (R/I factor per ASCE 7), but capacity design principles still apply to connections and diaphragms.

What is the typical cost range for a base isolation seismic design package in Elk Grove?

How do you verify that an existing building in Elk Grove is a candidate for seismic isolation retrofit?

We perform a preliminary ASCE 41-23 Tier 1 screening, then a detailed nonlinear analysis of the existing lateral system. The key factors are the ability to install a new basement diaphragm above the isolators, the cost of temporarily shoring the structure during jacking, and the moat excavation geometry relative to property lines.

What maintenance do seismic isolators require after installation in Elk Grove's climate?

Elk Grove's hot, dry summers and mild winters are favorable for elastomeric bearings. We specify a protective cover system against UV exposure and require periodic inspections (typically every 5 years) to check for rubber cracking, corrosion on steel plates, and clearance around the moat. Friction pendulum sliders need inspection of the stainless steel sliding surface for any contamination.
